In stock

Wireless Recording Video Inspection Camera/Borescope with High-Performance Articulating Probe

Item #
DCS18HPART

The #DCS18HPART Wireless Recording Video Inspection System/Borescope with High-Performance Articulating Probe is ideal for aircraft inspection, machinery and production line inspection, and general maintenance/repair/operations (MRO) tasks.

  • Combines the console (with a 3.5 in. LCD) of a DCS1800 Wireless Recording Video Borescope System/Borescope with the 1m (3.3 ft.) long #P18HPART wireless high-performance articulating probe. The probe is also available separately as a plug-and-play upgrade
  • Three buttons on the probe controller allow you to brighten, rotate and remove reflections from video and images to improve their clarity and readability
  • Detaching the probe to "go wireless" from up to 10m (33 ft.) away maximizes system flexibility by enabling two-handed inspections
  • The ability to change the probe’s viewing axis by up to 155° in two directions—even in close quarters—makes it possible to see around corners or even "behind" the probe
  • The optional #DCS1800-TR Wireless Probe Handle/Controller makes the DCS1800 console compatible with dozens of wired probes from General
  • Familiar menu-driven user interface for viewing videos and photos on the console’s LCD (or TV) and for saving media files to a standard SD memory card (4GB card included)
  • 14 available menu languages
Specifications
    • DCS1800 CONSOLE:
    • Display: 3.5 in. (89mm) diagonal TFT color LCD
    • Display resolution: 320 by 240 pixels (QVGA)
    • Recording resolution: 640 x 480 pixels (VGA)
    • Analog video out formats: NTSC and PAL
    • Wireless frequency/range: 2.4 GHz/33 ft. (10m)
    • Recording medium: Standard-size SD card (4GB card included)
    • Operating temperature: 32° to 140°F (0° to 60°C)
    • Weight: 13.4 oz. (380g)
    • Power source: Rechargeable 3.7V Li-ion battery or #AC2 Adaptor/Charger (included)

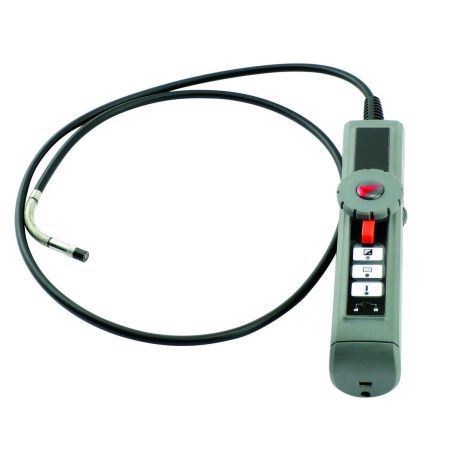

    • P18HPART PROBE:
    • Size and type: 1m (3.28 ft.) long x 6mm (0.23 in.) diameter, soft metal
    • Water/oil/dust resistance: Per IP67 standard
    • Depth of field/field of view: 0.25 to 12 in. (6.4 to 300mm)/60°
    • Camera lighting: Three forward-facing LEDs + two side-facing LEDs
    • Articulation angle: ±155°
    • Operating temperature: -4° to 140°F (-20° to 60°C)
    • Power source: Rechargeable 3.7V Li-ion battery
Includes
  • DCS1800 console
  • #P18HPART high-performance wireless articulating probe
  • 110° mirrored probe viewing tip
  • 4GB SD memory card
  • #AC2 AC adapter/battery charger
  • A/V cable
  • Custom hard plastic carrying case
  • 1-year limited warranty
Dimensions
  • 8.5 x 4.7 x 1.4 in. (215 x 120 x 36mm)
