In stock

1m Long x 6mm Diameter High-Performance Wireless Articulating Probe

Item #
P18HPART

The #P18HPART probe is ideal for capturing VGA resolution video and images of the hardest-to-reach and hardest-to-see areas and equipment. The ability to change the probe's viewing axis in situ by up to 155° in two directions allows you to see around corners or even "behind" the probe. At the same time, light boost, anti-reflection and image flip buttons on the probe controller can extract clear images from even the darkest spaces. In addition, wireless operation enhances the probe's flexibility (including one-handed operation).

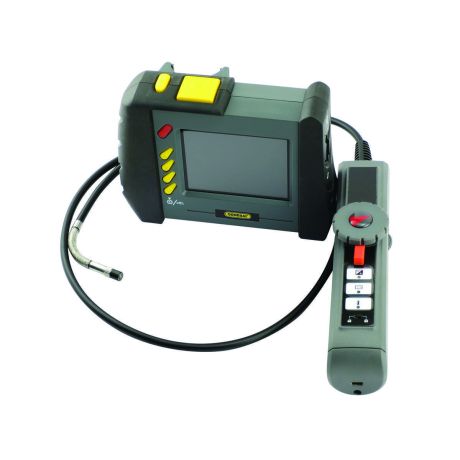

  • Included with #DCS18HPART

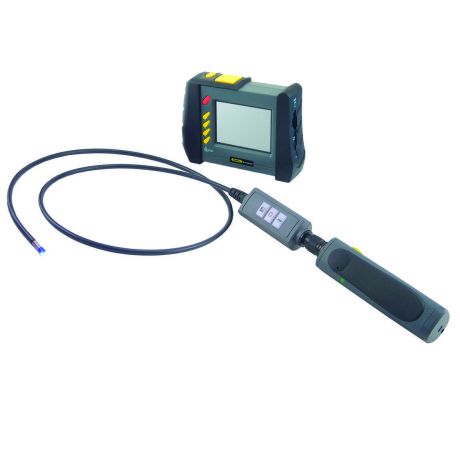

  • Also compatible with DCS1800 wireless recording consoles
  • Camera lighting is provided by six bright white LEDs—four forward-facing, two at an angle
  • Detaching the probe to "go wireless" from up to 10m (33 ft.) away maximizes system flexibility by enabling two-handed inspections
  • The probe's stainless steel camera head is immune to bathroom toilet cleaner, unleaded gasoline, diesel fuel, brake/transmission fluid and machine oil
  • The entire probe is dust/oil/waterproof to the IP67 standard
Specifications
  • Size and type: 1m (3.28 ft.) long x 6mm (0.23 in.) diameter, soft metal
  • Water/oil/dust resistance: Per IP67 standard
  • Depth of field/field of View: 0.25 to 12 in. (6.4 to 300mm)/60°
  • Camera lighting: Three forward-facing LEDs + two side-facing LEDs
  • Articulation range: ±155°
  • Operating temperature: -4° to 140°F (-20° to 60°C)
  • Power source: Rechargeable 3.7V Li-ion battery
Includes
  • Custom hard plastic carrying case
  • 1-year limited warranty
