Recording Video Inspection Camera/Borescope with High-Performance Articulating Probe

Item #
DCS16HPART

The #DCS16HPART Recording Video Inspection Camera/Borescope with High-Performance Articulating Probe is ideal for aircraft inspection, machinery and production line inspection, and general maintenance/repair/operations (MRO) tasks.

  • Combines the #H16 console of a #DCS1600 Recording Video Inspection Camera/Borescope with a 1m (3.3 ft.) long #P16HPART High-Performance Articulating Probe. This probe is also available separately in three lengths as a plug-and-play upgrade of the articula

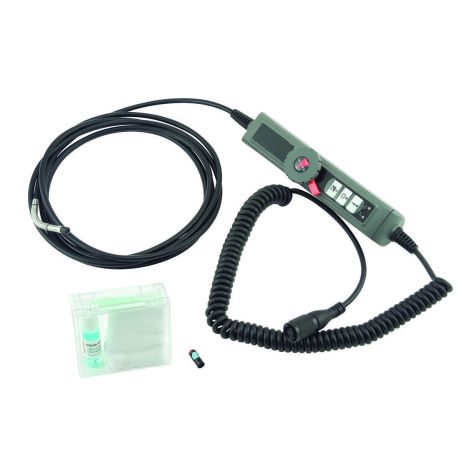

  • The #P16HPART probe is IP67 waterproof, with an articulation range of ±155° and a VGA resolution (640 x 480 pixel) camera lit by five adjustable-brightness white LEDs. Three buttons on the probe’s controller allow you to brighte
  • The ability to change the probe’s viewing axis by up to 155° in two directions—even in close quarters—makes it possible to see around corners or even "behind" the probe
  • The 3.5 in. diagonal color LCD on the console makes it possible to view probe video instantly and saved video clips and pictures later
  • Familiar menu-driven user interface for viewing videos and photos on the console’s LCD (or TV) and for saving media files to a standard full-size SD memory card (8GB card included)
  • 27 available menu languages
Specifications
    • H16 CONSOLE:
    • Display: 3.5 in. (89mm) diagonal TFT color LCD
    • Display resolution: 320 by 240 pixels (QVGA)
    • Camera and recording resolution: 640 x 480 pixels (VGA)
    • Analog video out formats: NTSC and PAL
    • 2X zoom and horizontal mirroring controls on front panel
    • Recording medium: Standard-size SD card (4GB card included)
    • Operating temperature: 32° to 140°F (0° to 60°C)
    • Weight: 13.4 oz. (380g)
    • Power source: Rechargeable 3.7V Li-ion battery or #AC2 Adaptor/Charger (included)
    • P16HPART PROBE:
    • Size and type: 1m (3.28 ft.) long x 6mm (0.23 in.) diameter, soft metal
    • Water/oil/dust resistance: Per IP67 standard
    • Depth of field/field of view: 0.25 to 12 in. (6.4 to 300mm)/ 60°
    • Camera lighting: Three forward-facing LEDs + two side-facing LEDs
    • Articulation range: ±155°
    • Operating temperature: -4° to 140°F (-20º to 60°C)
Includes
  • #H16 console
  • #P16HPART High-Performance Articulating Probe
  • 70° mirrored probe viewing tip
  • 4GB SD memory card
  • #AC2 AC Adaptor/Charger
  • USB and A/V cables
  • Custom hard plastic carrying case
  • 1-year limited warranty
Dimensions
  • 8.5 x 4.7 x 1.4 in. (215 x 120 x 36mm)
