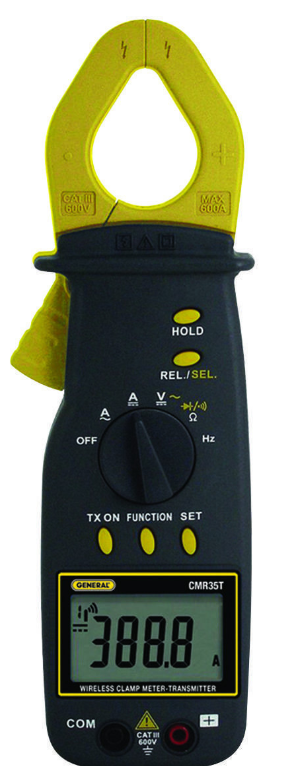

Wireless True RMS Clamp Meter/Transmitter

Item #
CMR35T
BUY NOW
  • 8 FUNCTIONS, 27 RANGES
  • MEASURES - AC/DC current, AC/DC voltage, resistance, frequency and true RMS measurements
  • USES A BEEPER - to check the integrity of diodes and circuits for continuity

The #CMR35 wireless clamp meter system is ideal for process/power plant operators, HVAC/R contractors, and building maintenance technicians.

  • 8 functions, 27 ranges
  • Measures AC/DC current, AC/DC voltage, resistance and frequency
  • Also uses a beeper to check the integrity of diodes and circuits for continuity
  • True RMS measurements
  • Designed to meet the CAT III 600V safety standard
  • Min/Max memory + data hold
  • Hi and Lo audible alarms for voltage and current level
  • Adjustable transmission span (extends battery life)
Specifications
  • AC/DC current measurement range/accuracy: 0 to 600A/±(1% of reading + 5 digits)
  • AC/DC voltage measurement range/accuracy: 0 to 600V/±(0.75% of reading + 3 digits)
  • Voltage measurement resolution: 1mV
  • Resistance measurement range: 0 to 40MΩ
  • Frequency measurement range: 0 to 100kHz
  • Wireless range: Up to 333 ft. (100m) with no obstructions
  • Sampling rate: 3x/sec (not transmitting); 1x/sec (transmitting)
  • Transmission span: 2, 10, 30, 60 or 120 seconds (user-selectable)
  • LCD size: 1.77 (H) x 1.04 (W) in. (45 x 26.5mm)
  • Jaw opening: 30mm (1.18 in.)
  • Input impedance: 10MΩ
  • Operating temperature: 14° to 122°F (-10° to 50°C) @ <80%RH
  • Weight: 8.85 oz. (251g)
  • Power source: Two "AA" batteries (not included)
Includes
  • 1-year limited warranty
Dimensions
  • 8.66 x 2.52 x 1.38 in. (220 x 64 x 35mm)
