Wireless Data Logging Weather Station

Item #
WS831DL

The #WS831DL Wireless Data Logging Weather Station is ideal for pro-am forecasters. It measures and documents barometric pressure, rainfall, temperature, relative humidity (RH), and wind speed and direction. And its display station can receive temperature and RH readings from up to five wireless sensors located within 100 ft.

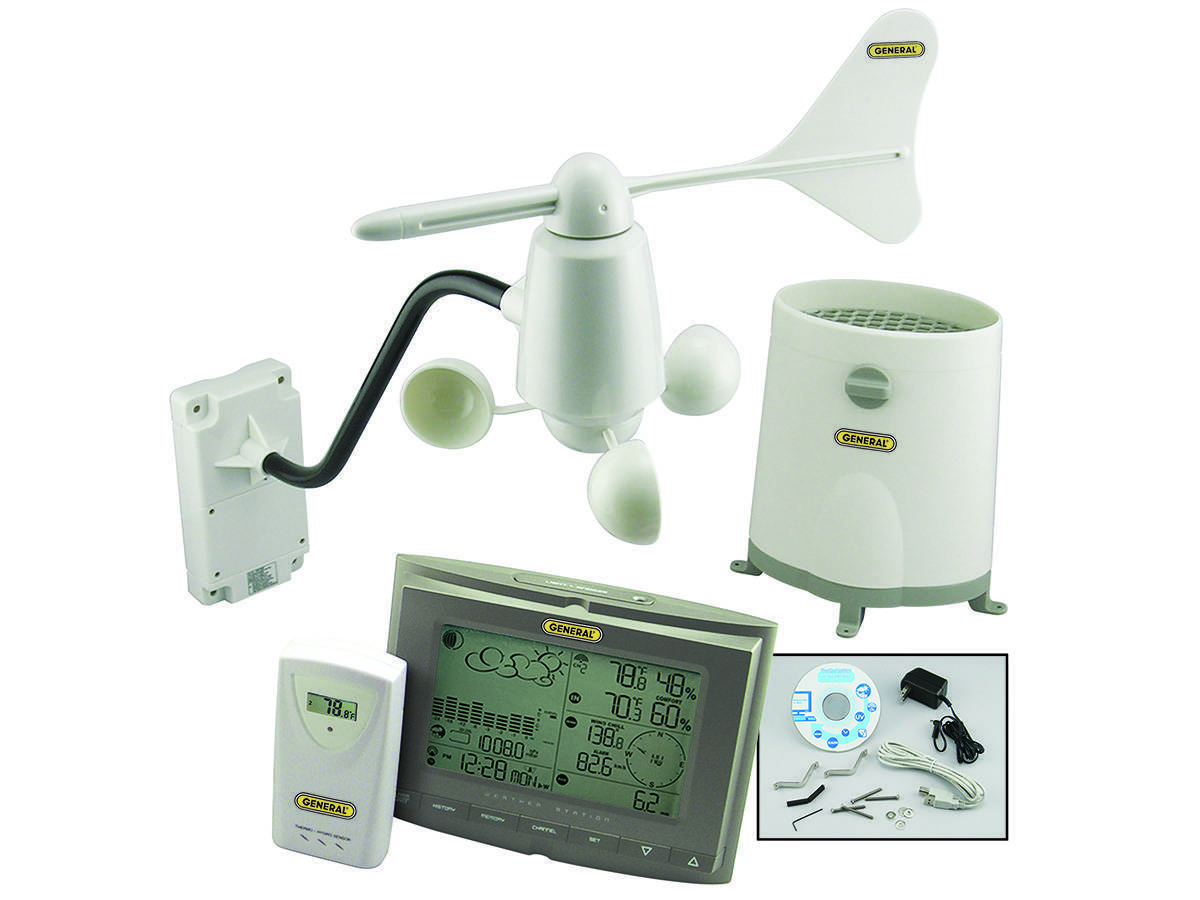

  • Comprises five components: A display station with multiple-readout LCDs and bar graphs, a remote anemometer, a remote rain gage, a remote temperature-humidity sensor; and PC interface/data logging software on a mini-disc
  • The system includes one #TR831 remote temperature-humidity sensor. The display station can accept up to four additional sensors (for climate control of remote areas such as a playroom, wine cellar or greenhouse)
  • The display station shows: Absolute and relative barometric pressure with trends and 24-hour history; Hourly, daily and weekly rainfall history in inches or mm; Real-time (or min/max) indoor and outdoor temperatures; the Wind Chill Index and Dew Point tem
  • Adjustable temperature alarms
  • The display station can be mounted on a wall or sit on a desk or shelf
Specifications
  • Barometric pressure measurement range/accuracy: 14.75 to 32.44 in.Hg (500 to 1100Hpa)/ ±0.015 in.Hg (±5 Hpa)
  • Rainfall measurement range/accuracy/resolution: 0 to 78.74 in. (0 to 2m)/±(5%/0.03 in. (0.66mm)
  • Rainfall data transmission period: 183 seconds
  • Remote temperature sensor measurement range/accuracy: -40° to 176°F (-40° to 80°C)/±1.8°F(±1°C)
  • Indoor and remote RH measurement range/accuracy/resolution: 0 to 99%RH/±5%/1%
  • Wireless temperature-RH data transmission period: 45 seconds
  • Indoor temperature measurement range/accuracy: 14° to 140°F (-10° to 60°C)/±1.8°F(±1°C)
  • Indoor/outdoor temperature measurement resolution: 0.1°
  • Wind speed measurement range/accuracy/resolution: 0 to 199.9 mph (0 to 89.3 m/s)/±(2 mph + 5% of reading)/0.1 mph
  • Wind direction measurementrange/accuracy/resolution: 0 to 360°/±11.25°/22.5°
  • Wind data transmission period: 33 seconds
  • Wireless transmission range/frequency: 100 ft. (30m) max, with no obstructions/433MHz
  • Power sources: Two "AA" batteries each for display station, remote rain gage and remote temperature sensor (none included)
Includes
  • Display station
  • #TR831 remote temperature-humidity sensor
  • Remote anemometer with mounting hardware
  • Remote rain gage with mounting hardware
  • PC interface/data logging software on mini-disc
  • USB cable
  • 7.5VDC AC adaptor for display station
  • 1-year limited warranty
Dimensions
  • Display unit: 7.31 x 5.39 x 1.26 in. (185.8 x 136.9 x 32mm)
  • Remote temperature-humdity sensor: 2.37 x 4 x 1 in. (60 x 101 x 25mm)
  • Remote anemometer: 19.16 x 19.16 x 15.35 in. (486.6 x 486.6 x 390mm)
  • Remote rain gage: 6.49 x 6.89 x 4.72 in. (165 x 175 x 119mm)
